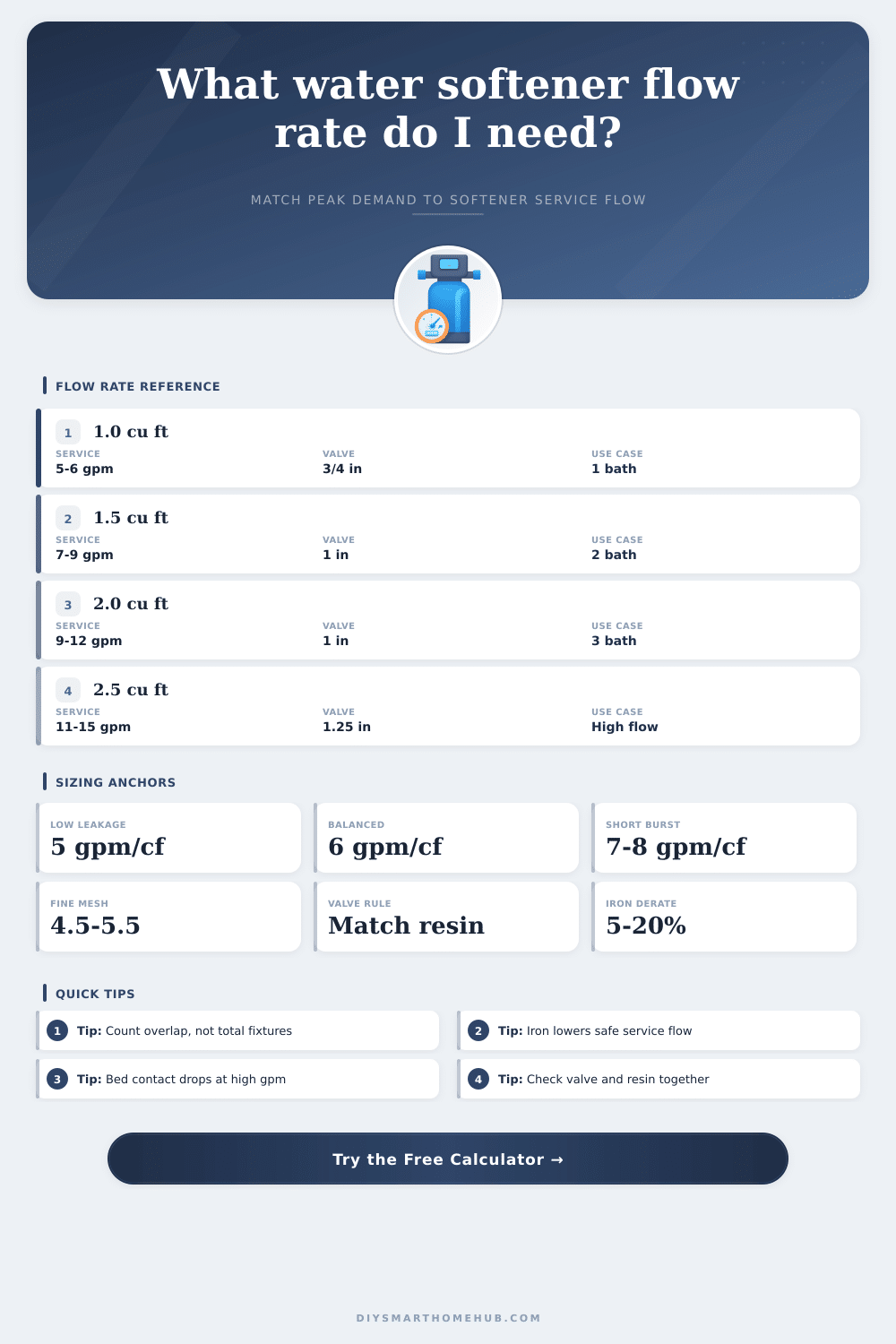

Water Softener Flow Rate Calculator

Compare simultaneous fixture demand against resin media limits, tank geometry, empty bed contact time, and valve size so you can see whether a softener will keep up at peak household flow.

Peak fixture overlap

Resin service rate

Valve and tank check

📋Preset flow scenarios

Each preset loads a realistic household demand pattern, media type, and softener package so you can compare a modest one-bath setup against rain-shower suites, iron-bearing wells, and larger three-bath homes.

⚙Flow model inputs

Switch units for fixture flow and custom tank fields. The calculator still checks the same hydraulic limits in the background, then shows both GPM and L/min in the results.

Flow target

Choose how conservative the flow rating should be. Lower leakage targets keep more contact time inside the resin bed.

Resin media profile

Standard 8% resin is a common municipal-water baseline and usually lands near 5 to 7 GPM per cubic foot depending on how strict the leakage target is.

Existing softener package

Pick the system you already have or the package you want to test against the demand profile.

Valve and bypass size

The final continuous flow cannot exceed either the resin bed limit or the valve body limit.

Custom resin volume (cu ft)

Enter the actual resin volume if your system is not a standard stock tank package.

Tank diameter (in)

Tank diameter drives bed area and velocity, which changes how hard the resin is being pushed at peak flow.

Occupants

Large households create more overlap risk even when each fixture flow rate is modest.

Bathrooms served

Bathroom count helps build a small diversity bump for homes where morning overlap is common.

Simultaneous showers

Count only the showers that can realistically run at the same time.

Shower flow each (gpm)

Many modern heads stay near 1.8 to 2.5 GPM, while rain fixtures can climb higher.

Other softened branches at once

Use this for bathroom faucets, utility sinks, refrigerator fill, or similar smaller draws.

Average branch flow (gpm)

A low-flow faucet may sit near 0.5 GPM, while a utility sink can be noticeably higher.

Laundry or dishwasher draw (gpm)

Enter the combined softened-water draw when one appliance overlaps the shower period.

Tub or body spray load (gpm)

Keep this at zero unless the home has a tub filler, body spray zone, or another large softened branch.

Iron in water (ppm)

Iron reduces the comfortable flow window because contact time and cleaning demand both increase.

Buffer margin (%)

A modest buffer catches fixture overlap, colder water, and the occasional short-term spike above the base load.

Softener flow verdict

Run the calculator to compare fixture demand with the selected resin package, contact time, and valve body.

Sizing band

Peak Softened Demand -- Peak overlap in GPM and L/min

Selected System Rating -- Continuous soft-water service flow

Recommended Minimum Size -- Resin volume and package suggestion

Flow Margin -- Leakage and pressure-drop risk

Flow breakdown

The calculator will explain whether the limiting factor is resin contact time, tank velocity, or the valve body.

📊Live hydraulic snapshot

These cards show the part of the system that matters most once demand rises: the per-cubic-foot flow window, the tank geometry being pushed, the valve ceiling, and the resulting contact time.

Adjusted Media Window

Flow per cubic foot will appear here after the calculator applies the media profile and any iron derate.

Tank Geometry

Package label, bed area, and why diameter matters will appear here.

Valve Ceiling

The calculator checks the valve body so you do not size from resin alone.

Contact and Velocity

Empty bed contact time and bed velocity are both useful sanity checks when flow spikes.

📖Reference tables

Media profile flow guide

Media	Low leak	Balanced	Short burst
Standard 8% resin	5.0 gpm/cf	6.0 gpm/cf	7.0 gpm/cf
Fine mesh resin	4.5 gpm/cf	5.3 gpm/cf	6.0 gpm/cf
10% crosslink resin	5.5 gpm/cf	6.5 gpm/cf	7.5 gpm/cf
High-flow layered bed	6.0 gpm/cf	7.0 gpm/cf	8.0 gpm/cf
Upflow high-efficiency	5.2 gpm/cf	6.2 gpm/cf	7.2 gpm/cf

Typical fixture flow assumptions

Fixture	Flow	Metric	Note
Eco shower	1.5 GPM	5.7 L/min	Low-use shower head
Standard shower	2.0 to 2.2	7.6 to 8.3	Common modern shower
Rain shower	2.5 to 3.0	9.5 to 11.4	High-demand fixture
Bathroom faucet	0.5 to 0.8	1.9 to 3.0	Small but additive
Dishwasher or washer fill	0.8 to 1.5	3.0 to 5.7	Can overlap showers
Tub filler or spray zone	4.0 to 6.0	15.1 to 22.7	Short but heavy draw

Common tank packages and balanced service flow

Package	Resin	Diameter	Bed area	Balanced flow	Typical fit
8 x 44	0.75 cu ft	8 in	0.35 sq ft	4 to 5 GPM	One-bath, low overlap
9 x 48	1.0 cu ft	9 in	0.44 sq ft	5 to 6 GPM	Compact homes
10 x 44	1.25 cu ft	10 in	0.55 sq ft	6 to 7.5 GPM	Small family load
10 x 54	1.5 cu ft	10 in	0.55 sq ft	7 to 9 GPM	Two-bath homes
12 x 52	2.0 cu ft	12 in	0.79 sq ft	9 to 12 GPM	Three-bath homes
13 x 54	2.5 cu ft	13 in	0.92 sq ft	11 to 15 GPM	High-flow families
14 x 65	3.0 cu ft	14 in	1.07 sq ft	13 to 18 GPM	Large or spa-heavy homes

Home snapshots

Home profile	Peak demand	Suggested package	Why it lands there
One-bath condo	3.0 to 4.5 GPM	0.75 to 1.0 cu ft	Single shower plus light branch overlap rarely needs a larger bed.
Two-bath family home	6.0 to 8.5 GPM	1.5 cu ft	Two showers and one appliance push many 1.0 cu ft systems to their limit.
Iron-bearing well ranch	6.5 to 8.0 GPM	1.5 to 2.0 cu ft	Iron derating lowers the comfortable service window even before fixtures increase.
Three-bath morning rush	8.5 to 11.5 GPM	2.0 to 2.5 cu ft	Bed velocity and valve capacity both become real constraints at this point.
Rain shower plus tub	11.0 to 15.0 GPM	2.5 to 3.0 cu ft	High-demand fixtures need both resin area and a larger valve body.
Main house plus ADU	10.0 to 13.0 GPM	2.5 to 3.0 cu ft	Separate occupied spaces raise both overlap odds and total branch count.

These flow references are planning numbers for residential softeners using common resin bed depths and valve classes. Very high sediment, iron, manganese, or unusual pressure loss can justify a larger system than peak GPM alone suggests.

💡Practical notes

Flow rating is not just a resin number

A softener can have enough resin volume on paper but still feel weak at the tap if the valve body is too small or the bed velocity is pushed too hard. This calculator checks all three limits together.

Iron changes the safe service window

When iron is present, the resin needs more contact and cleaner regeneration to stay consistent. That is why the calculator derates service flow as iron rises instead of assuming a clean municipal-water rating.

Water softeners work by stopping mineral buildup in the plumbing system. They do that by means of ion change, during minerals as calcium and magnesium switch with sodium. Like this you receive soft water.

High mineral content in water can cause deposits in pipes, that limits the flow and lowers the pressure over time. Scale from hard water reduces the water flow and grows the need of repairs. It also cover taps, showerheads and devices.

How Water Softeners Work

Big flow rates are important. Softeners point it in gallons each minute (GPM) during use. Usually it falls between 2 and 4 GPM.

For instance, typical kitchen faucet have around 2.2 GPM in 60 psi. Family softeners, that handle 7-10 GPM, keep steady pressure during peak use. For large families you well choose model with flow rates over the maximum need, so 10-12 GPM.

Like this you has always soft water, even during showering in high periods. The SpringWellSS system distinctly surpasses with 20 GPM.

Plumbing also matters. Pipe diameter in the plumbing system, as 3/4 inches against 1 inch, decide the maximum flow. Softeners can cause some drop according to the flow rates.

The Kenmore 350 32,000 grain softener ensures soft water flowing during it keep home water pressure high. This system has proof of NSF International for reduce hard minerals, scale buildup and iron in water.

Water moves differently through those systems. Softeners can be upflow-type, where water pushes upward, or downflow, where it goes down. During normal service it operates downflow.

Hard water enters the mineral tank and pass through bed of spherical beads. Those plastic beads usually are made up of polystyrene and bear sodium ions. They exchange calcium and magnesium for sodium.

Upflow advantage comes during regeneration. Then brine enters of the bottom of the resin tank and flows upward through the bed. Like this contaiminants pushd in the opposite to the enter direction, so the pure resin does not kontaminatges.
