Earth Fault Current Calculator

Earth Fault Current Calculator

Estimate phase voltage, earth loop impedance, neutral grounding resistance effect, soil and electrode contribution, available earth fault current, touch voltage, and breaker or RCD trip margin.

Earthing System Presets

Choose a starting point for the earthing arrangement, protection device, source, feeder, and soil path, then adjust the measured values for the actual circuit.

Fault Loop Inputs

Planning estimate only. Confirm earth fault calculations with measured loop impedance, protection device curves, local code limits, and a qualified electrical professional.
Sets how strongly the electrode and soil path affect the loop.
Phase voltage is derived from line voltage.
Use line-to-line voltage for three-phase systems.
Source impedance up to the fault loop origin.
One-way route length from source or panel to fault point.
Approximate conductor resistance at normal operating temperature.
Multiplies phase conductor resistance to model the return path.
Parallel grounding paths reduce protective conductor impedance.
Use zero or small values for solidly grounded systems.
Measured rod, mat, or grid resistance when available.
Scales the electrode contribution when soil data is approximate.
Spacing is assumed good enough for partial parallel benefit.
Trip margin compares fault current to the device threshold.
Common planning limits are 50 V dry or 25 V special locations.

Earth Fault Results

Fault current
-
available earth fault
Earth loop impedance
-
Zs including return path
Touch voltage
-
equipment rise estimate
Trip margin
-
fault current / trip threshold
Waiting

Calculation Breakdown

Earthing and Protection Spec Grid

TN-C-S
Earthing system
32 A B
Protection device
10 mm2 Cu
Conductor profile
Average
Soil and electrode

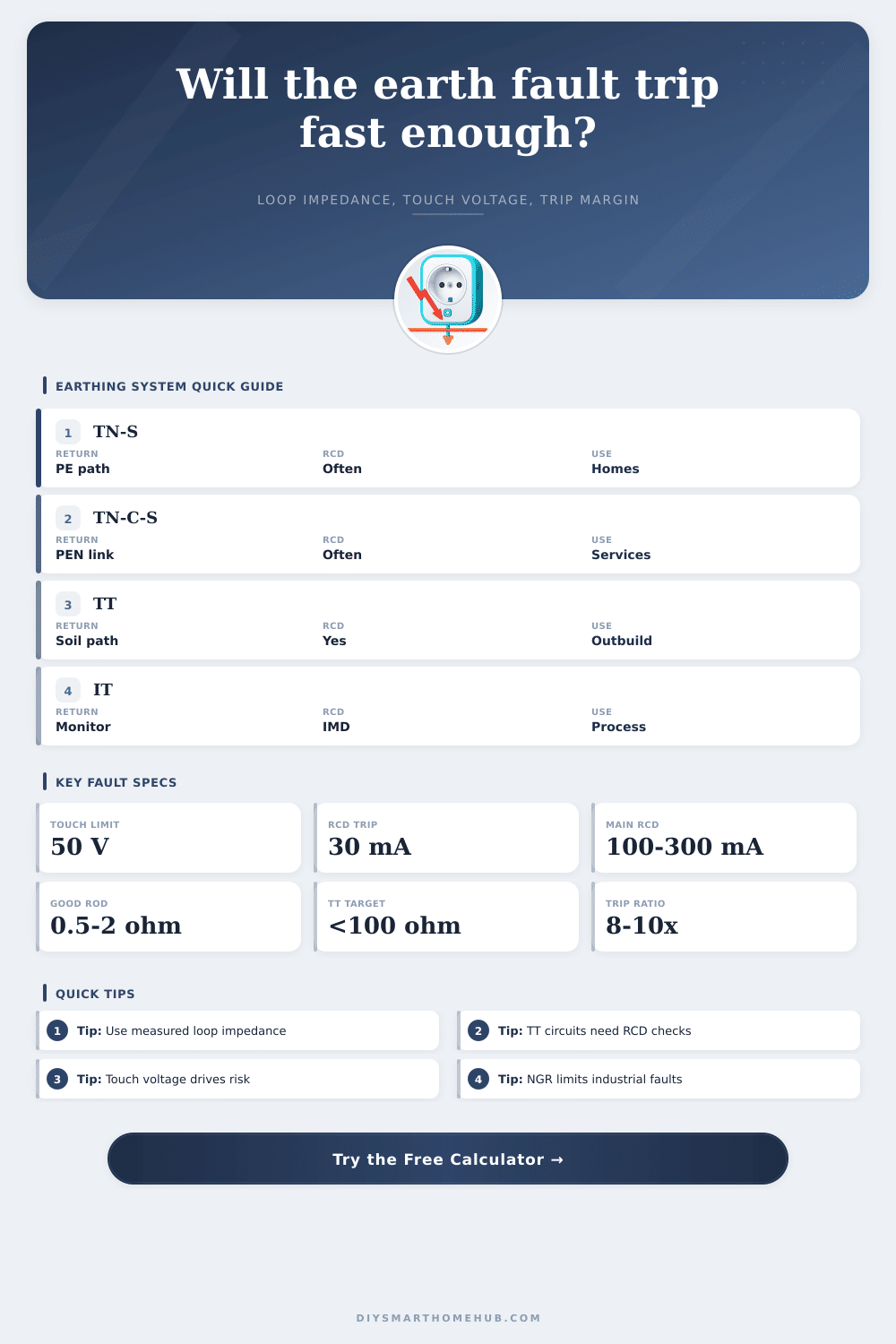

Earthing System Reference

SystemMain return pathCalculator emphasisProtection note
TN-SSeparate PE conductorSource plus conductor loopBreaker trip often possible if Zs is low
TN-C-S / PMECombined PEN before serviceVery low service return impedanceCheck bonding and PEN assumptions
TTElectrode and soil pathSoil and rod resistance dominateRCD margin is normally the key check
Resistance groundedNeutral grounding resistorNGR intentionally limits currentDevice setting must match limited current
High-resistance groundedHigh-value neutral resistorFault current can be only a few ampsAlarm and locate first fault
IT isolatedInsulation and monitor pathFirst fault is restricted by isolationSecond fault needs separate study

Protection Threshold Table

DeviceTrip basisCalculator thresholdBest-fit use
Type B MCB3 to 5 times rating5 x breaker ampsGeneral circuits with low inrush
Type C MCB5 to 10 times rating10 x breaker ampsModerate motor or transformer inrush
Type D breaker10 to 20 times rating20 x breaker ampsHigh inrush industrial loads
MCCB instantaneousAdjustable magnetic pickup10 x selected amp ratingPanel feeders and distribution
RCD / GFCIResidual current settingmA rating converted to ampsTT, outdoor, and personal protection
IMD alarmInsulation monitor settingAlarm threshold onlyIT systems with first-fault continuity

Soil and Electrode Contribution Table

Electrode conditionTypical resistanceSoil factorModeling note
Ground ring or grid0.5-2 ohm0.7-1.0Strong contribution in TN and TT models
Multiple bonded rods2-25 ohm0.7-1.6Parallel rods lower effective resistance
Single rod in average soil10-50 ohm1.0Common TT planning starting point
Dry sand or gravel50-200 ohm1.6RCD trip margin becomes critical
Rocky or frozen soil100+ ohm2.4Use measured resistance before relying on model

Common Circuit Benchmarks

CircuitEarthing profileExpected resultSecondary check
Home final circuitTN-S or TN-C-SHigh enough current for MCBMeasured Zs at far outlet
Detached outbuildingTT electrodeBreaker current often too low30 mA or 100 mA RCD margin
480 V MCCSolid or resistance groundedNGR can cap fault currentGround relay pickup
Data room HRGHigh-resistance groundedLow current, alarm-focusedInsulation monitor response
Generator feederSeparately derived TNSource impedance can be higherGenerator fault decrement
EV outdoor circuitTN or TT with RCDTouch voltage drives reviewRCD setting and electrode value

Earth Fault Calculation Tips

Use measured impedance when possible. A small change in source or protective conductor impedance can move a breaker from comfortable margin to no instantaneous trip.
Separate shock and clearing checks. A TT circuit can have a low fault current but still clear with an RCD, while touch voltage can remain the deciding safety value.

High pressure hoses have hidden leaks, just like earth faults. Until that stray current meets a human finger tip, the system keeps running, and by then it’s too late. Earth fault current isn’t academic. It can mean the difference between a breaker tripping within seconds to save lives or a circuit staying red-hot long enough to start a fire.

Because we can easily measure voltage drop or thermal ratings, most electrician spends their time on these numbers. But fault paths? They’re hidden until they’re needed. Use this tool to build the hidden resistance of your installation before pulling a single wire.

How to Calculate Electrical Safety Correctly

The basic premise centers on loop impedance, or how much resistance the current experiences as it exits its path and attempts to find its way back to source. There’s the phase conductor heading outward, the point of fault itself, then the return path where all this electricity goeses back. That return path in most moddern homes using a TN system is typically a separate protective earth wire traveling parallel to your hot conductor. It’s simple math: Low loop impedance results in high-current spike and blown breaker.

But then we’re into older houses/builder, rural areas, etc., and it gets interesting. In either case, the choice of earthing system is most important. Are you using a TT system, like a detached shed with a ground rod of its own? The current returns through the dirt instead of copper. Grounding electrode resistance varies with soil’s temperature, makeup, and moisture content. A cold winter or dry summer can double your grounding electrode resistance overnight.

This is accounted for in the calculator, which allows changing configuration of electrodes and soil resistivity factors. No need to become a geologist here, just know that clay soil does better than sandy soil. Setting realistic expectations will help: if your results seem too good to be true, they likely are.

Another vital parameter to watch out for is touch voltage. This measures how much potential there is between any live parts in the event of a fault and the ground beneath our feet. High touch voltage may kill even when a breaker doesn’t trip instantly. Typically touch voltage is limited by standards to not more than fifty volts in general areas which makes it safe for humans. So if your calculation shows touch voltage beyond this then you have an issue regardless of blown fuses. Perhaps it is time to upgrade your earthing scheme or install residual current devices that will trip the circuit before the overcurrent protection.

To select the proper protection device and know when it is tripped, you must also understand the concept of trip margin. With magnetic breakers this means knowing that they are designed to snap open with high currents. Because long cable runs can reduce fault current and smaller wire gauges does as well, if the fault current is insufficient then your breaker won’t see any surge and just continue carrying the fault current until some insulation melts. This is common on long branch circuits running out to remote loads. Comparing your chosen device’s trip threshold to your available fault current helps the calculator find those weak spots.

For example, a thirty milliamp residual current device trips at very little leakage making it perfect for high impedance situations where overcurrent devices fails to protect. The quality of connections also tends to be undervalued. A loose splice or corrosion on a terminal block will increase resistance and you’ll never see it on a schematic. Perfect numbers on paper don’t mean squat if your workmanship isn’t up to par. Always compare your numbers to what you measure in the field. Set your design goals using the tool and then check your installed circuit to make sure what’s out there matches theory. If not, you’ve got a problem somewhere, maybe degraded conductors or even a broken neutral link.

So grounding isn’t just some law that you follow to stay out of jail, it’s also how you ensure that the system will respond correctly and consistently when something goes wrong. You don’t want some unclear outcome because you gave it an unclear path. The presets on the calculator give you a starting point for typical setups such as an industrial panel or residential feeder. From there adjust the parameters to fit what was installed at your site. Adding parallel return paths can be the difference between a hazard and a trip. Adjusting the conductor size makes all the differance too.

So basically you’re creating a safety net here. Under normal conditions, the power flows through the wires. When something goes wrong, it flows through the earth path. Ideally, you would of want a backup system strong enough to trip protection as soon as possible. It should be subtle enough that it doesn’t interfere with everyday operations. Respect the soil conditions if using electrodes, get the loop impedance correct, and always test for yourself in the real world. Having a circuit that appears perfect on paper but fails in practice is actualy worse than having no plan at all. Make sure your return paths are low resistance, clean and short. This will keep the current where it should be.
