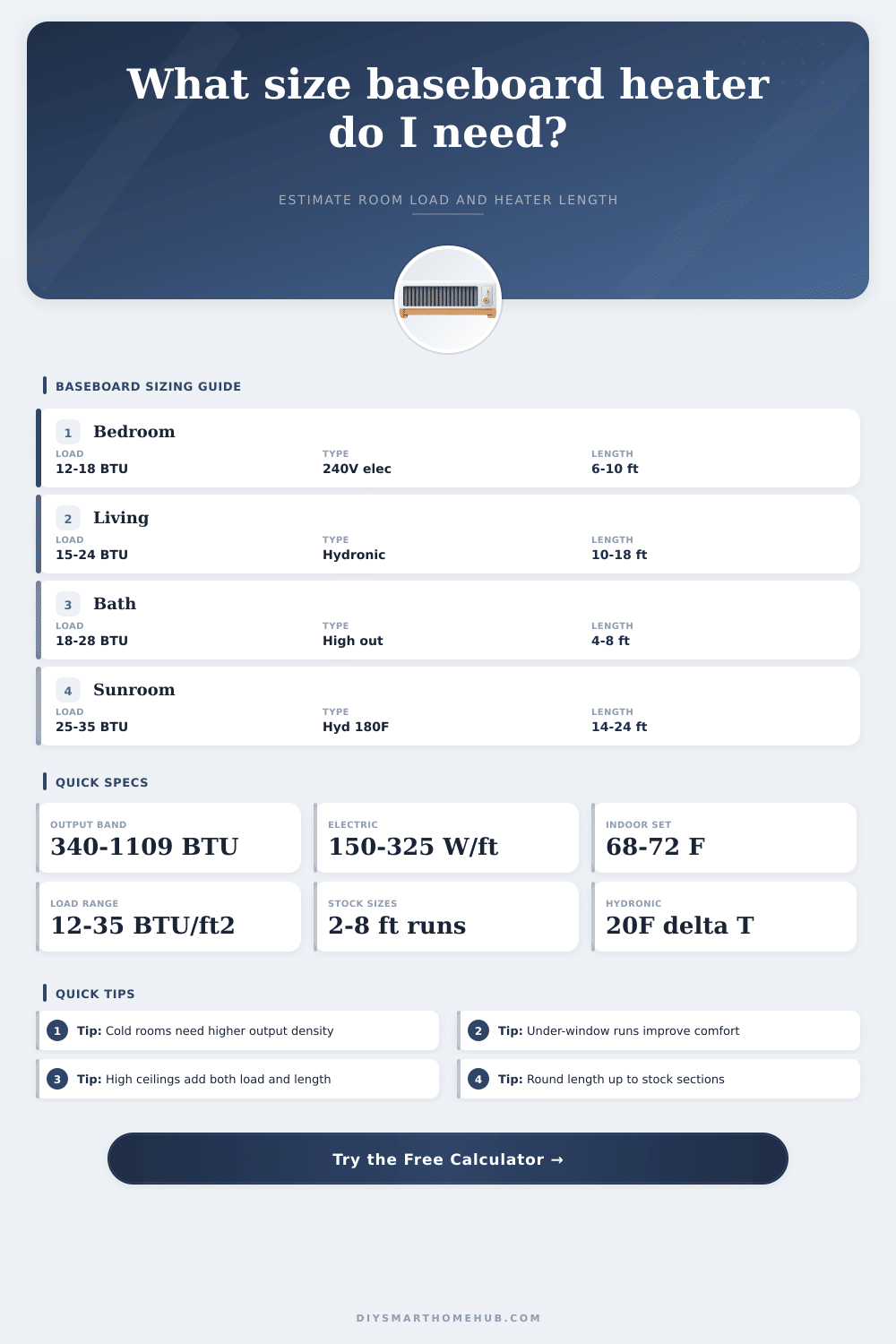

Baseboard Heater Size Calculator

Estimate room heat loss, required heater length, stock section planning, and electric or hydronic delivery from one room-by-room sizing tool.

Load Method Combines delta T, ceiling height, insulation, windows, exposure, and infiltration into a room-specific design load.

Heater Profiles Compare standard electric baseboards with several hydronic output levels so short walls and low-temp systems can be sized differently.

Install Planning Rounds up to practical stock lengths and adds section advice, electrical amperage, or hydronic flow guidance for the final run.

Preset Rooms

Imperial inputs active

Presets fill room geometry, climate, envelope assumptions, and a heater profile. You can then fine tune exposure, reserve, or heater type.

Sizing is based on exposed room load. For connected open plans, measure the actual heated zone rather than the total floor area of the house.

Room Inputs

Room shape

Room usage

Room length (ft)

Room width (ft)

Ceiling height (ft)

Indoor design temp (F)

Outdoor design temp (F)

Insulation level

Window coverage

Airtightness

Exterior wall count

Placement style

Baseboard heater profile

Sizing reserve

Rectangle and circle modes estimate perimeter automatically. Triangle mode assumes a right triangle for exposed perimeter. Custom mode lets you enter direct heated area plus exposed perimeter for L-shapes and open plans.

Standard 240V electric baseboard output is modeled at 250 W per linear foot, or about 853 BTU/h per foot.

Calculated Sizing Results

Design load

Thermal load for the room

Required heater length

Linear footage before stock rounding

Installed output

Rounded stock length capacity

Delivery check

Circuit or water flow guidance

Heater Profile Reference

Electric 120V

150 W/ft

512 BTU/h per ft
small rooms or short runs

Electric 240V

250 W/ft

853 BTU/h per ft
most standard rooms

Electric High Output

325 W/ft

1109 BTU/h per ft
tight wall space

Electric 208V

210 W/ft

716 BTU/h per ft
multi-family and light commercial

Hydronic 180F

610 BTU/ft

Fin-tube at high water temp
strong output per foot

Hydronic 160F

460 BTU/ft

Mid-temp reset condition
common condensing boiler target

Hydronic 140F

340 BTU/ft

Low-temp operation
needs more wall length

Cast Iron 180F

550 BTU/ft

Heavy emitter with storage
stable output and comfort

Load Planning Table

Condition	Typical delta T	Room load band	Planning note
Interior bedroom, good shell	25-35 F	12-18 BTU/ft2	Standard 240V or 160F hydronic often fits under one window wall.
Living room with two exterior walls	35-50 F	15-24 BTU/ft2	Split the run under glass if possible to smooth radiant comfort.
Bathroom or kitchen edge zone	40-55 F	18-28 BTU/ft2	High-output electric or 180F hydronic helps when wall space is limited.
Sunroom or glass-heavy addition	50-70 F	25-35 BTU/ft2	Expect longer runs, higher reserve, and more than one wall of emitter.

Heater Comparison Table

Profile	Output per ft	Supply basis	Best fit	Watch for
Electric compact 120V	150 W / 512 BTU	120V branch circuit	Small bedrooms, offices	Amp draw rises quickly on long runs
Electric standard 240V	250 W / 853 BTU	240V branch circuit	Typical retrofits	Usually needs 2-pole breaker planning
Electric high-output 240V	325 W / 1109 BTU	240V branch circuit	Bathrooms and short wall sections	Watch concentrated watt density
Electric 208V	210 W / 716 BTU	208V service	Condos and some commercial suites	Lower output than 240V at equal length
Hydronic fin-tube 180F	610 BTU	180F average water	Cold climates, short walls	Higher water temp reduces condensing hours
Hydronic fin-tube 160F	460 BTU	160F average water	Balanced boiler reset	Longer runs than 180F systems
Hydronic low-temp 140F	340 BTU	140F average water	Heat pump or aggressive reset	Needs substantial wall length
Cast iron baseboard 180F	550 BTU	180F average water	Renovations seeking stable comfort	Heavier emitter footprint

Common Room Examples

Room example	Heated area	Design load	Typical heater plan
12 x 14 bedroom, 8 ft ceiling	168 ft2	2,200-3,100 BTU/h	4-6 ft of standard 240V electric or 6 ft of 160F hydronic
18 x 22 living room, moderate glass	396 ft2	6,500-9,000 BTU/h	10-14 ft split under windows
8 x 10 bathroom, two exterior walls	80 ft2	1,700-2,400 BTU/h	2-4 ft high-output electric when wall space is short
14 x 18 sunroom, heavy glass	252 ft2	6,500-8,800 BTU/h	12-20 ft of 180F hydronic or mixed perimeter run

Sizing Notes

Use exposed load, not gross square footage

Two rooms with the same floor area can need very different baseboard lengths if one has more glass, higher ceilings, or a larger exposed perimeter. Geometry and envelope details matter.

Round to stock lengths and split long runs

Baseboard cabinets are usually stocked in 2, 3, 4, 5, 6, and 8 ft sections. Rounding up and splitting long runs under windows usually gives smoother comfort than one concentrated section.

Choosing the right size for a heater is important for keeping a room comfortable. For rooms around 150 square feet will work well with a heater of 1500 watts or less. That depends on things like insulation and air flow of cold air.

Usually electric heaters require 10 watts each square foot of space for enough heat. Many electricians use that simple rule: 10 watts for one square foot. For instance for 1200 square feet in a basement needs 12,000 watts from heaters.

How to Choose the Right Heater Size

But if a kitchen has a window in the ceiling that is not very energy-saving, 10 watts each foot stays good base for estimate size of any heater.

Heaters are available in various lengths and powers. Lengths go usually in 12-inch steps, and watts in 250-watt steps. During buying you can mix sizes if the amount reaches or exceeds the needed heat power.

Wired in 240 volts, such a heater give 250 watts each foot. For count the power measure length in feet and multiply by 250. When result 6.84 feet round upward to a 7-foot heater.

Those standard models do not always have in precise length.

You commonly lays heaters against walls or in the bottom edge of rooms. They measure around 8-10 inches tall and 2-8 feet long according to size of the space. Runtal heaters have in heights 6, 9 or 12 inches with lengths of 2 until 14 feet.

If lacks the back plate at one bit measure of one end of the covered area until the another and subtract 1 inch. For lengths above 7 feet (or 6 for Basic series) you require several panels with links for reach the whole length.

It needs first do calculation of heat burden. It considers size of the room insulation intended internal temperature and outside cold. After BTU loss for hour is counted you chooses the involved amount of baseboard.

Because hydronic heaters divide the whole involved BTU of the room by means of 170. Hot water heaters delivers 1 EDR each 170 BTU. Other way: take total BTU divide by means of 600 for find feet of baseboard.
