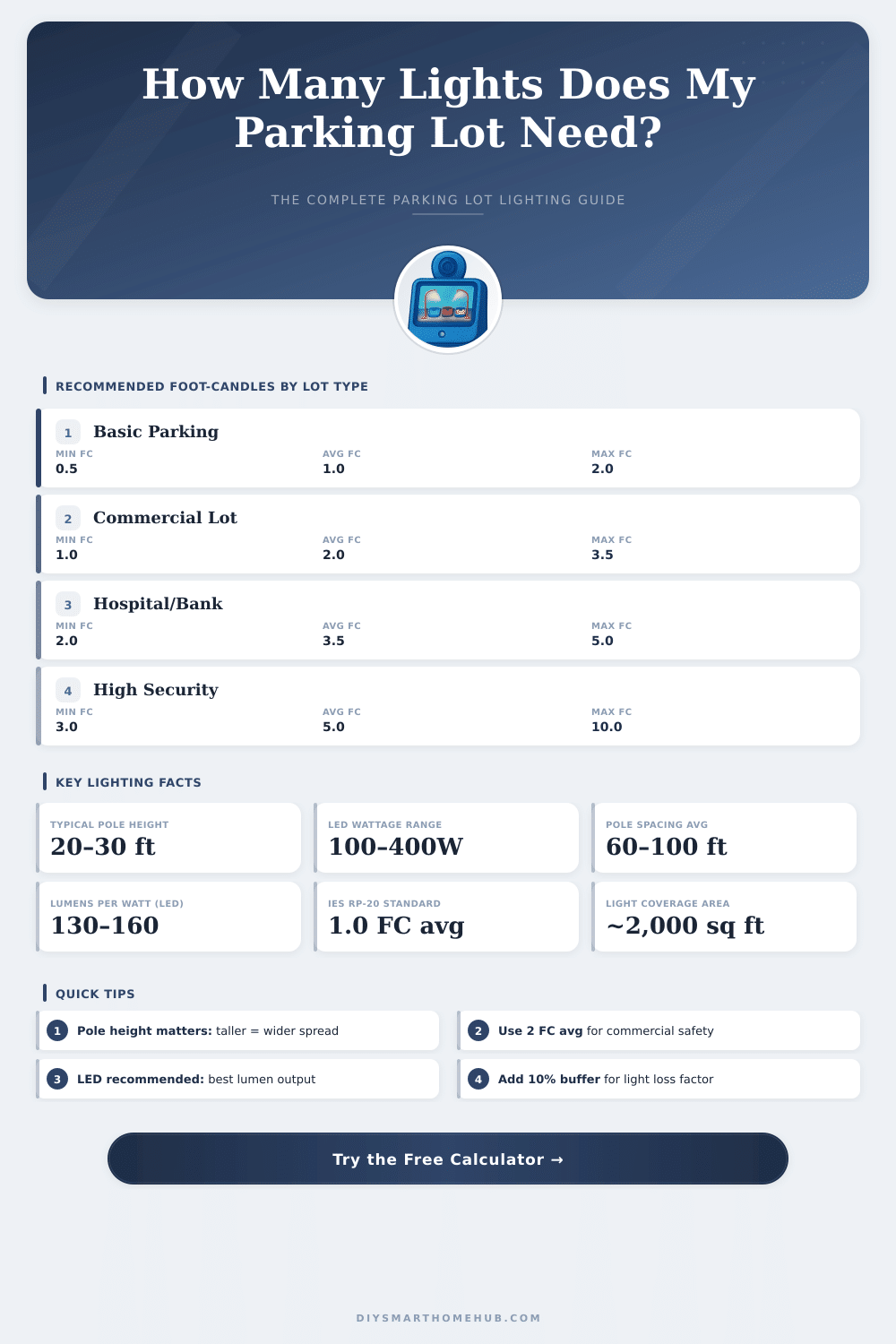

💡 Parking Lot Lighting Calculator
Calculate how many light fixtures your parking lot needs based on size, fixture type, and lighting standard
| Facility Type | Min FC | Avg FC | Uniformity Ratio | Metric (lux avg) |
|---|---|---|---|---|
| Residential / Low-Use | 0.2 | 0.5 | 4:1 | 5.4 lux |
| General Parking (IES RP-20) | 0.5 | 1.0 | 4:1 | 10.8 lux |
| Commercial / Retail | 1.0 | 2.0 | 3:1 | 21.5 lux |
| High-Activity / Mixed Use | 1.5 | 3.0 | 3:1 | 32.3 lux |
| Hospital / Medical | 2.0 | 4.0 | 3:1 | 43.1 lux |
| Bank / High Security | 3.0 | 5.0 | 2:1 | 53.8 lux |
| Pole Height | Coverage Diameter | Coverage Area (sq ft) | Pole Spacing | Coverage (m²) |
|---|---|---|---|---|
| 15 ft (4.6 m) | ~45 ft | ~1,600 sq ft | 40–50 ft | ~149 m² |
| 20 ft (6.1 m) | ~60 ft | ~2,800 sq ft | 55–65 ft | ~260 m² |
| 25 ft (7.6 m) | ~75 ft | ~4,400 sq ft | 65–80 ft | ~409 m² |
| 30 ft (9.1 m) | ~90 ft | ~6,400 sq ft | 80–100 ft | ~595 m² |
| 40 ft (12.2 m) | ~120 ft | ~11,300 sq ft | 100–120 ft | ~1,050 m² |
| Fixture Type | Wattage | Lumens | Efficacy (lm/W) | Best Use |
|---|---|---|---|---|
| LED Area Light | 100W | 13,000 | 130 | Small lots |
| LED Area Light | 200W | 26,000 | 130 | Medium lots |
| LED Area Light | 300W | 40,000 | 133 | Large lots |
| LED Shoebox | 150W | 20,000 | 133 | Retail / strip |
| LED Shoebox | 480W | 67,000 | 140 | High-mast |
| Metal Halide | 400W | 36,000 | 90 | Legacy lots |
| High Pressure Sodium | 250W | 27,500 | 110 | Legacy lots |
| Fluorescent | 250W | 23,000 | 92 | Canopies |
| Project Type | Typical Area | Target FC | Fixtures Needed (est.) | Area (m²) |
|---|---|---|---|---|
| Small Strip Mall | 3,000 sq ft | 1.0 FC | 4–6 | 279 m² |
| Grocery Store Lot | 15,000 sq ft | 2.0 FC | 12–18 | 1,394 m² |
| Office Park | 20,000 sq ft | 1.5 FC | 14–20 | 1,858 m² |
| Hospital Lot | 40,000 sq ft | 4.0 FC | 40–60 | 3,716 m² |
| Shopping Center | 60,000 sq ft | 2.0 FC | 45–70 | 5,574 m² |
| Airport Surface Lot | 200,000 sq ft | 2.0 FC | 150–220 | 18,580 m² |
Parking lot lighting commonly refers to outdoor lamps, that usually sit on poles above parking lots, pavements and driveways. This exterior lighting intends to mostly explain areas where cars and pedestrians move. It matters to protect folks and help them reach their target, when the sun sets.
The shoebox lamp is one of the designs, that you find everywhere. The name fully answers, because it really looks like a shoebox standing up on a pole. Its flat and rectangular form hides all parts in a compact, efficient mode.
Simple Guide to Parking Lot Lights
One uses them to light big spaces, as parking lots for many cars streets and public gathering spots.
LED lights for parking lots became a real revolution lately. They give stronger light, while they consume much less energy, what easily lowers your cost for electricity. Options for color temperature dump the old methods from usage.
Some LED lamps can replace the task of traditional 1000-watt HPS bulbs. One manager of services, that I know, altered those old 1000-watt HPS units to 144-watt LEDs. Within three years, that lowered his monthly bill from almost 391 dollars to 295 dollars.
Here the kdin of savings, that adds up quickly.
Pole lamps set themselves directly to high poles and posts. Commercial pole systems allow to choose the power and the height from 10 to 30 feet. If you work with a 28-foot pole, the distance between lamps usually ranges between 80 and 130 feet.
At shorter 80-foot intervals, a 200-watt LED provides lots of light strength.
Footcandles help to measure the lighting of parking lots. One footcandle describes the light, that one candle gives at one foot of distance. When you plan that, well control the needs for footcandles and also consider the spread of light.
Beside hotels, choose type II, III or IV for light spread with shields on the lamps, to lower the surrounding light and stop light from entering threw windows and doors. Full cutoff or down-facing design works well, they stop light from going upward, where it does not need to.
Darkness leaves areas in shadow and opens way to danger. Good lighting does the opposite, it strengthens security and limits risks for all. LED lamps spread clear, precise and even light through the whole space.
Dark shades and surrounding glow disappear, what pushes the place safer for folks, that walk here.
Solar lighting solutions answer for parking lots also. Full solar systems with batteries and panels avoid digging for cables and do not raise your power cost. Some solar parking lots operate well during years.
Another saving option is retrofit LED corn-cob bulbs, they cost less than replacing whole lamps andinstall in little time.
