❄️ Mini Split Room Size Calculator
Find the exact BTU capacity your mini split system needs based on room dimensions, ceiling height, and climate factors.

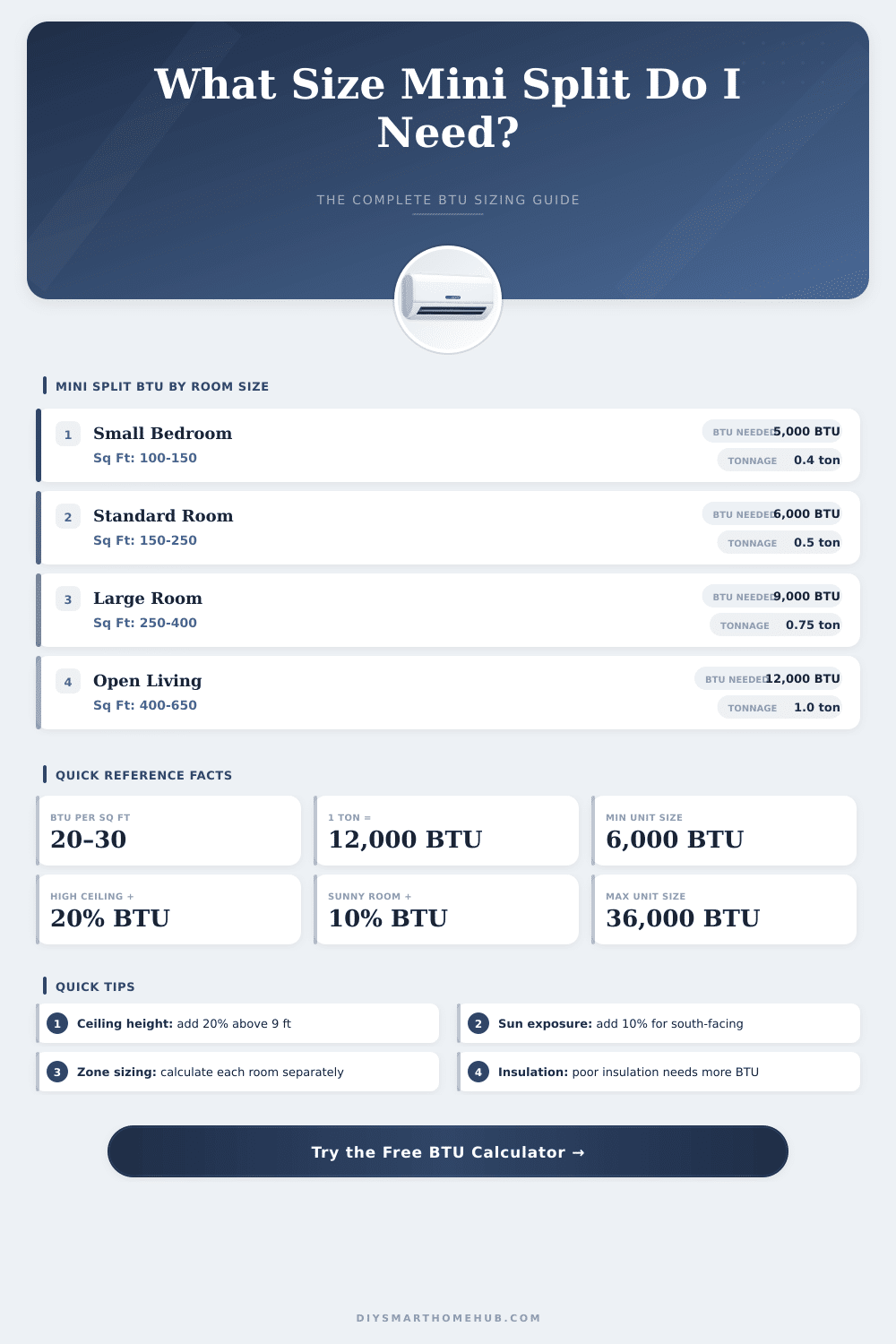

| Room Type | Sq Ft Range | Sq M Range | Recommended BTU | Tonnage |
|---|---|---|---|---|
| Small Bedroom | 100 – 150 | 9 – 14 m² | 5,000 – 6,000 BTU | 0.4 – 0.5 ton |
| Standard Bedroom | 150 – 250 | 14 – 23 m² | 6,000 – 7,500 BTU | 0.5 – 0.6 ton |
| Large Bedroom | 250 – 350 | 23 – 33 m² | 8,000 – 9,000 BTU | 0.7 – 0.75 ton |
| Living Room | 300 – 500 | 28 – 46 m² | 10,000 – 14,000 BTU | 0.8 – 1.2 ton |
| Open Plan Living | 500 – 800 | 46 – 74 m² | 14,000 – 18,000 BTU | 1.2 – 1.5 ton |
| Master Suite | 400 – 650 | 37 – 60 m² | 12,000 – 16,000 BTU | 1.0 – 1.3 ton |
| Home Office | 100 – 200 | 9 – 19 m² | 5,000 – 7,000 BTU | 0.4 – 0.6 ton |
| Kitchen / Dining | 200 – 350 | 19 – 33 m² | 9,000 – 14,000 BTU | 0.75 – 1.2 ton |
| Garage / Workshop | 300 – 600 | 28 – 56 m² | 12,000 – 18,000 BTU | 1.0 – 1.5 ton |
| Ceiling Height | BTU Multiplier | Example Room (300 sqft) | Adjusted BTU |
|---|---|---|---|
| 8 ft (Standard) | 1.00x (baseline) | 300 sqft @ 25 BTU/sqft | 7,500 BTU |
| 9 ft (Common) | 1.05x (+5%) | 300 sqft @ 25 BTU/sqft | 7,875 BTU |
| 10 ft (High) | 1.10x (+10%) | 300 sqft @ 25 BTU/sqft | 8,250 BTU |
| 12 ft (Vaulted) | 1.20x (+20%) | 300 sqft @ 25 BTU/sqft | 9,000 BTU |
| 14 ft (Cathedral) | 1.30x (+30%) | 300 sqft @ 25 BTU/sqft | 9,750 BTU |
| Model BTU | Tonnage | kW Equivalent | Ideal Coverage (Moderate) | Max Coverage (Mild) |
|---|---|---|---|---|
| 6,000 BTU | 0.5 ton | 1.76 kW | ~200 sqft | ~300 sqft |
| 9,000 BTU | 0.75 ton | 2.64 kW | ~300 sqft | ~450 sqft |
| 12,000 BTU | 1.0 ton | 3.52 kW | ~400 sqft | ~600 sqft |
| 15,000 BTU | 1.25 ton | 4.40 kW | ~500 sqft | ~750 sqft |
| 18,000 BTU | 1.5 ton | 5.28 kW | ~600 sqft | ~900 sqft |
| 24,000 BTU | 2.0 ton | 7.03 kW | ~800 sqft | ~1,200 sqft |
| 30,000 BTU | 2.5 ton | 8.79 kW | ~1,000 sqft | ~1,500 sqft |
| 36,000 BTU | 3.0 ton | 10.55 kW | ~1,200 sqft | ~1,800 sqft |
Choose the right size of mini split system for your room is not only something “nice to have”, that is truly important. If the unit is too small, it will struggle constantly to keep the temperature. If it is too big, you only waste energy and the space still does not feel fully comfortable.
Getting the right size is what separates a pleasant home from constant irritation.
Choose the Right Size Mini Split for Your Room
First, start by figuring out the square feet of the room. If dealing with a normal rectangular or square space, measure the length and width, then multiply them. That number will be your base for everything else.
The math behind the sizing of mini split is pretty simple. Many folks use about 20 BTU per square foot, although some go up to 25. For instance, for a room of 200 square feet you would need something in the rough range of 4,000 BTU.
If the space is bigger, say 24 feet by 23 feet, that gives 552 square feet; with the 25 rule you reach around 13,800 BTU. And here where things get more interesting: the range can be somewhere between 12 and 25 BTU per square foot, and the right number depends on your specific situation.
Still, for most rooms you usually end in the 20, 25 BTU per sqaure foot. A room of 500 square feet, for instance, normally needs somewhere between 9,000 and 12,000 BTU to stay comfortable.
Smaller rooms show another picture. A compact home office or kids room of 100 to 150 square feet? A unit of 6,000 BTU handles that pretty well, and even around 5,000 could work.
Bathrooms are a bit tricky because they are small, count on 2,000 to 4,000 BTU, depending on the layout and how much humidity you must handle. If you move to a medium bedroom or guest room in the range of 150 to 400 square feet, a unit of 9,000 BTU does the work nicely. Sunrooms in that same area however could need a bit more power.
For bigger spaces, a mini split of 12,000 BTU can comfortably cover around 500 to 600 square feet. If you look at something between 500 and 900 square feet, a unit of 24,000 BTU is really the write level. That works for bigger bedrooms, living areas, dining spaces and kitchens without big effort.
Here where things get tricky: the insulation and the real nature of the room matters much more than one commonly thinks. A sunroom with little insulation and three walls directly exposed to the weather can need 18,000 BTU even in an area that normally would need less. Basements work very differently than sunrooms.
The benefit of mini split systems shows when you add space where there are no pipes (additions), outbuildings, basements. One important thing to know: those units sometimes cool the air faster than they remove humidity. Still, a unit of 9,000 BTU in a room of 144 square feet can still drop the temperature to around 70 degrees, when outside are 80 degrees.
Most models come withremotes, which makes setting your wanted temperature pretty easy.
