Wall Insulation R Value Calculator

We spend money insulating the stuff within our walls’ frame, and forget about wood that holds it all up. Why? Because it makes sense: We use two by four walls, we purchase some R-13 fiberglass batts, and move along. Wrong. The studs is not insulators; they conduct heat much faster than the fluff between them, turning your carefully packed cavities into thermal leaks! Here’s where folks go wrong: Unless you consider the framing fraction of a wall, that precious insulation you paid good money for isn’t going to be worth what you think it will be.

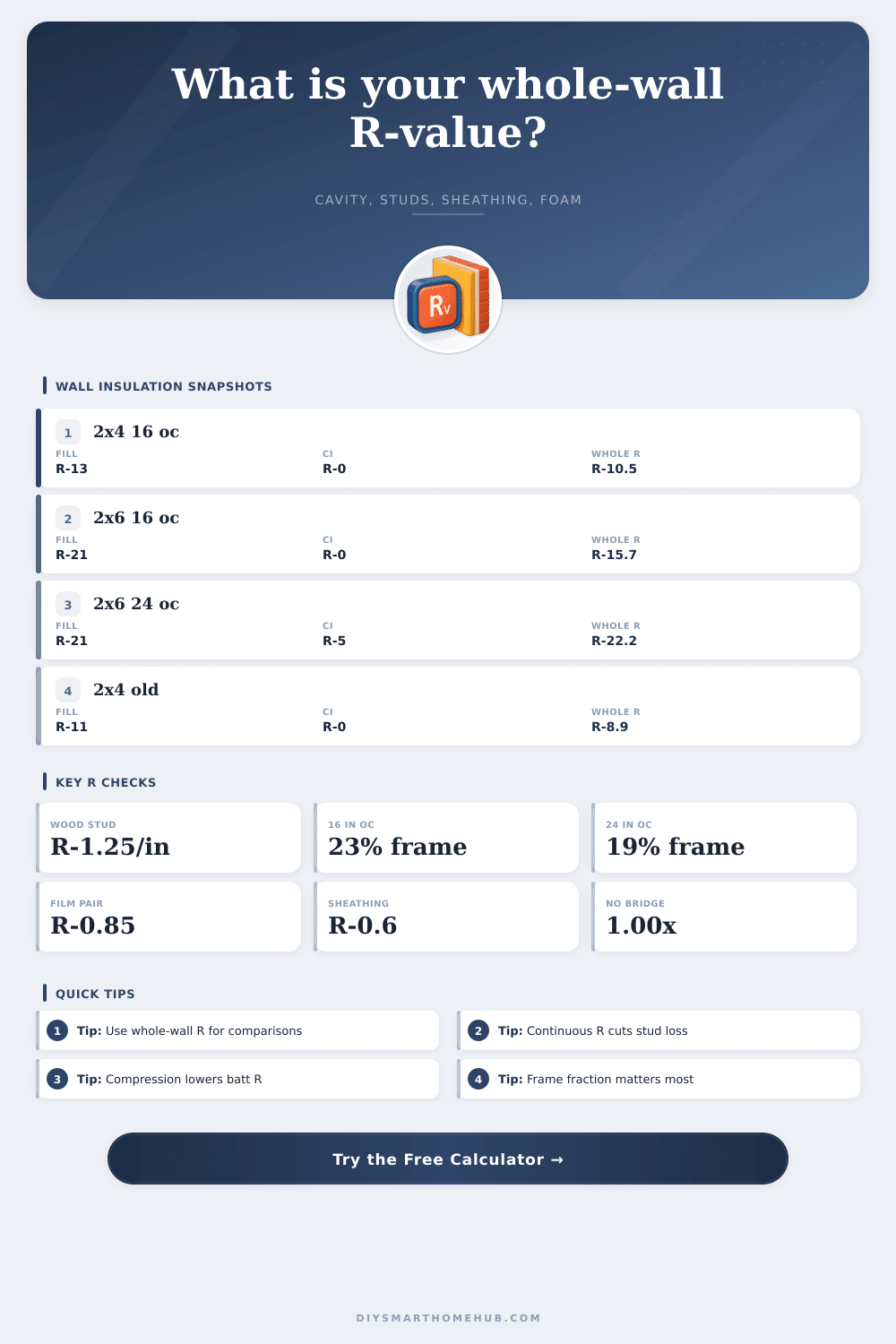

A typical two by four wall with fiberglass will perform approximately like an R-10 wall, instead of its nominal value of R-13. The calculator does the work for you after you input your own material selection and stud spacing. So no need to guess at how much thermal bridging performance you’re sacrificing.

How to Improve Your Wall Insulation

How to make sense of this difference? We need to understand how heat travels in parallel through a wall assembly. Heat pass freely around framing members (headers, plates, studs). It’s blocked by the cavity fill, which offers resistance. Because so much of the wall surface are taken up by framing, however, the overall wall R-value isn’t the simple average of the two routes. About twenty-three percent of the surface area of any conventionally framed wall (with 16-inches between studs) is structural lumber, meaning about one-quarter of your heat escapes without passing through the insulation.

The tool factors this into its calculation, weighting the framing route vs. The cavity route based off the spacing you provide. It allows you to account for more detailed framing methods, such as using a lot of dense blocking. It also accounts for less detailed methods, like advanced framing techniques. These choices will either boost or reduce that fraction.

Adding continuous insulation to the outside face of the sheathing goes a long way toward reducing those losses. It applies a uniform insulation layer across both cavities and studs, preventing heat from escaping easy via wood shortcuts, instead having to cross one consistent material. A little bit of rigid foam goes a loooong way; it will actualy improve the overall performance more than double-studding with deeper cavity fill. The before/after chart on the page illustrates this. Note what happens when you change from zero inches (R-0) to as few as five inches (R-5) of external coverage, particularly with older walls where you cannot increase cavity depth.

The secret ingredient is compression. If your space has uneven framing or you’re retrofitting an existing wall, the fiberglass or mineral wool will likely have been squeezed into places where it’s less than its nominal thickness. That means some of the air pockets that make up the material (and that create its thermal resistance) will be smashed flat, which reduce its effective R-value per inch. Enter a number in the compression loss field of the calculator, and you’ll see what impact the imperfect fit has on performance.

Because spray foam fills in irregular spaces by expanding, it doesn’t have this problem at all, but it does come with environmental considerations as well as a price tag. The type of material used is not as significant than the care taken during installation. For instance, conventional fiberglass batts has an R-value-per-inch rating slightly lower than mineral wool, but if those batts are trimmed poorly or begin to sag over time, the higher performance is lost. Likewise, cellulose blown or densely packed into cavities will typically outperform in the real world. It’ll fill every nook and cranny by filling gaps while still avoiding voids around plumbing or wiring. As long as the material physically touches every surface of the cavity, you’re paying for actual thermal resistance; not just for the fact that there’s insulation fiber somewhere in the cavity.

Metal stud walls are another issue because they is so conductive. In fact, without any continuous insulation to interrupt the thermal bridge, all that metal framing will really suck up the energy and greatly lower the entire wall assembly’s efficiency. If you use any type of unusual structural element (like heavy timber headers) or steel studs, there is a thermal bridge factor in the calculator where you can further penalize the framing path. It’s a tiny change on the interface, but makes a huge difference when it comes to your heating bills.

So the bottom line: Knowing the overall R-value of your wall allows you to plan for comfort and do some rough energy modeling with a realistic number. It shifts the discussion away from talk about fancy label names towards numbers that describe what actually happens. Once you can see the details, including how the properties of materials, continuous layers, and framing fractions work together, you don’t buy bags of insulation anymore; instead you design walls that retain heat where it’s supposed to be retained. Once you lay them all out, the math is straightforward, but the savings are very real if you’ve grown weary of paying for the warmth that slips right between the studs.
