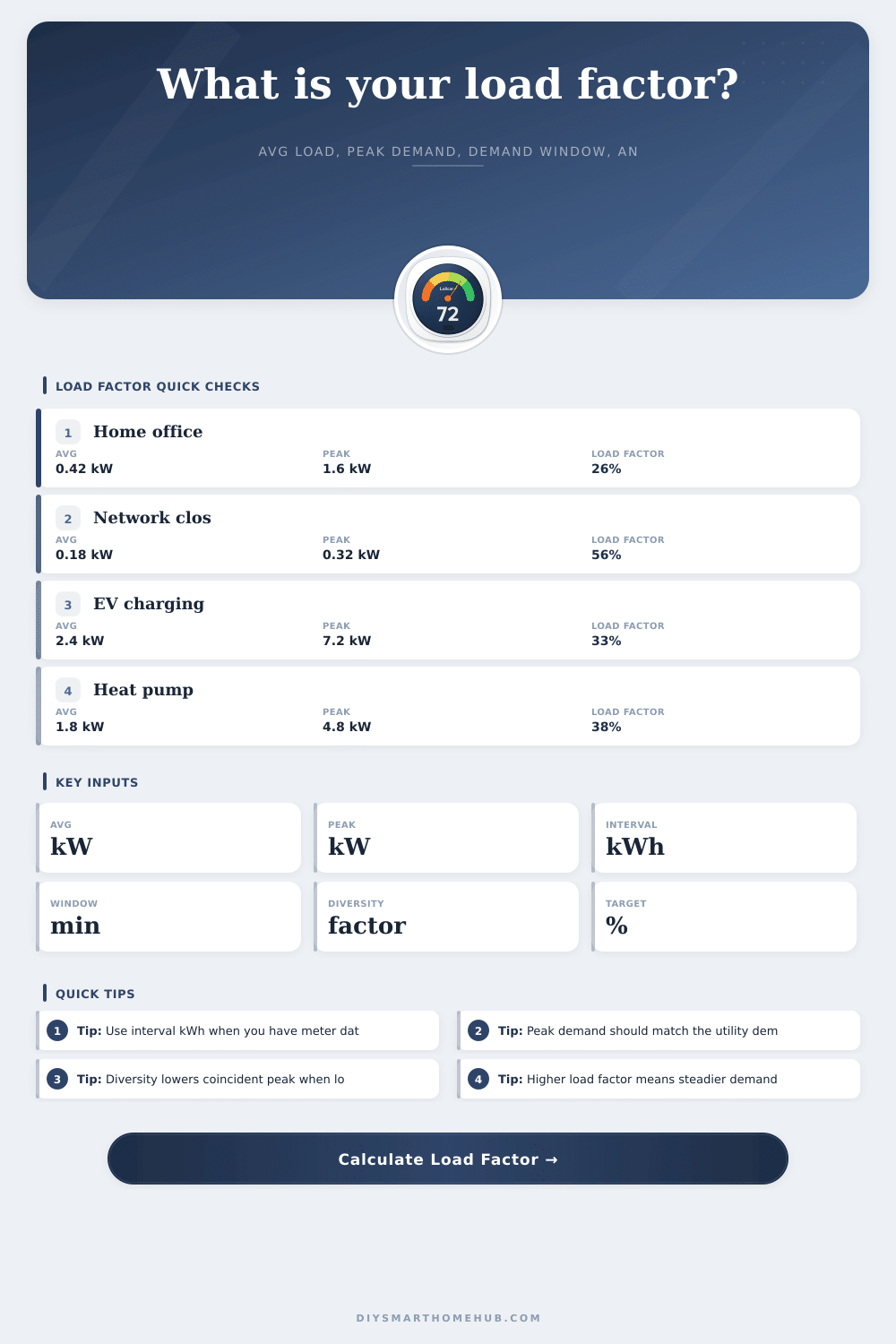

Load Factor Calculator
Compare average load with peak demand, demand-window energy, operating hours, diversity factor, phase count, and a target load factor for smart home circuits, backup loads, EV charging, workshops, and small services.
1 Load profile presets Choose a starting point
2 Calculator inputs Average, peak, window, hours, diversity
1.9 kW average on 6.2 kW diversified peak
Load factor is based on average load divided by coincident peak demand.
3 Formula breakdown What the calculator did
4 Load profile spec grid Inputs and derived values
5 Reference tables Demand, phases, and targets
| Load factor band | What it usually means | Typical action |
|---|---|---|
| Below 20% | Short, sharp peaks dominate the profile. | Sequence large loads, stagger EV charging, or reduce startup overlap. |
| 20% to 40% | Common for homes with cooking, HVAC, EV, or tool peaks. | Move flexible loads into quiet periods and watch demand-window spikes. |
| 40% to 70% | Moderately steady use with manageable peak spread. | Good target range for many smart home subpanels and backup profiles. |
| Above 70% | Very steady load or a profile with limited peak variation. | Check whether base load is higher than expected. |
Load factor is a ratio, so the same average kWh can look very different depending on coincident peak demand.
| Demand window | Use when | Window energy formula |
|---|---|---|
| 5 minutes | Fast equipment cycling or detailed smart meter data. | kW demand x 5 / 60 |
| 15 minutes | Common utility demand interval and good default. | kW demand x 15 / 60 |
| 30 minutes | Smoother home or small commercial demand review. | kW demand x 30 / 60 |
| 60 minutes | Hourly energy logging or broad operating profile checks. | kW demand x 60 / 60 |
For utility bills, match the exact demand interval used by the meter or tariff.
| Phase count | Planning use | Current estimate |
|---|---|---|
| 1 phase | 120 V or 230 V branch load. | kW x 1000 / (V x PF) |
| 2 phase / split-phase | Typical North American 120/240 V home service. | kW x 1000 / (240 V x PF) |
| 3 phase | Small shop, larger inverter, or commercial panel. | kW x 1000 / (1.732 x V x PF) |
| Per phase kW | Quick balancing check. | Diversified kW / phase count |
This is a planning estimate, not a substitute for electrical-code load calculations.
| Target strategy | Formula impact | Example |
|---|---|---|
| Reduce peak | Target peak = average / target factor. | Shift EV charging away from oven, dryer, or heat pump peaks. |
| Raise useful average | Needed average = target factor x demand. | Run flexible loads during low-demand operating hours. |
| Increase diversity | Diversified demand = summed peak / diversity factor. | Use automation rules so large loads do not overlap. |
| Shorten window spike | Window kWh falls when peak is brief or staggered. | Delay compressor or pump restart after a power event. |
A higher target load factor can be reached by lowering peaks, raising productive average load, or both.
6 Practical tips Better demand profiles
The solution is to add up your appliances’ wattage rating. That’s what most people believe will give them answer to their high electric bill. But appliances don’t run at max power at any given moment; instead, they’re typically consuming less than their rated wattage. So when we adds up those numbers, the result is usually much higher then expected.
That difference is known as load factor, which is a key metric for utility engineers (and others aiming to size solar array or control peak demand charges). The base rate on your bill is determined by total kilowatt-hours, hence why most people focus on that number. But with time-of-use rates, it’s not only about how much electricity you use; it’s also about when you use it.
What Is Load Factor?
You can calculate load factor using a load factor calculator, which take into account both your peak demand and your average load. Enter the highest amount drawn simultaneous during a certain timeframe and then the average power draw in that same timeframe. Divide the former by the latter and you get a percentage. If it’s high, you’ve got steady load; if it’s low, you have sharp peaks.
It’s kind of like driving down a street. During rush hour, there might be twice as many car as normal. You need to design around that rush hour. For electric, that means the wire is thicker and the service panel are bigger.
The diversity factor you put into tool accounts for that because it recognizes you probably don’t run your EV charging, your heat pump, your oven and your dryer simultaneous at full blast. By applying a diversity factor, it lower the simultaneous peak to something more reasonable.
On the page itself there’s a reference table that explains what each band of load factor mean. A low one (below 20%) means you have a lot of short power bursts. That could be because you have lots of motor load at home, or things start up inefficiently. To reduce that peak, stagger when high-draw appliances comes online by charging them according to a schedule, or via smart plugs.
A high load factor (above 40%) means your load are fairly constant. That can mean it’s continuous, like the load from a server, or perhaps you’ve automated well.
What about the demand window? Most people don’t know that it’s actualy more important. Peak demand is measured by utilities in certain time windows (usually 15-30 minutes). If your spike is just for two minutes and the window is 30 minutes, then your spike may not be counted as peak. Match your calculation with your utility’s demand window to make sure you’re solving the correct problem. You can also play around with this setting on the tool, where you will see how different your results would look if you smoothed out a spike of, say, ten minutes versus one of an hour.
Also, if you are on split-phase (two legs) or three-phase service, think about phase balance. An unbalanced panel where one leg is carrying all the heavy loads and the other is empty might look like good load factor overall. While the calculator will help you estimate current per phase, this isn’t a replacement for physically inspecting your breaker distribution. Evenly spreading out your loads prevents overheated neutral conductors.
So how do we improve our load factor? We even out the peaks while staying comfortabley. How do we do that? By moving some of the flexible loads out of peak hours and using power differently. If you’re aiming to reduce a demand charge, or you want to plan for battery backup, it’s all the same thing. Flatten the peaks and make the average something useful. Today’s profile is what the numbers say; tomorrow’s is what you do.
