Wire Fill Percentage Calculator

Calculate conduit fill by summing conductor areas and comparing them with NEC-style 53%, 31%, and 40% raceway fill limits for one, two, or three-or-more conductors.

⚡Common Conduit Fill Presets

📏Raceway And Conductor Inputs

Conduit / raceway type Internal areas use common NEC Chapter 9 Table 4 values.

Conduit trade size The calculator uses total internal area in square inches.

Group A conductor size Use this for the main current-carrying conductors.

Group A insulation type Insulation changes outside diameter and area.

Group A conductor count Count ungrounded, neutral, and switched conductors as applicable.

Group B conductor size Optional second size for grounds, neutrals, or mixed feeders.

Group B insulation type Leave count at zero if this group is not used.

Group B conductor count Equipment grounding conductors still occupy raceway area.

Group C conductor size Optional third size for mixed-control or feeder raceways.

Group C insulation type Use the closest listed type when planning preliminary fill.

Group C conductor count Set to zero when only two conductor groups are present.

Spare same-as-Group-A conductors Add pulled spares because they count toward physical fill.

Additional custom cable area (in²) Use for a listed cable assembly or measured low-voltage cable bundle.

Additional custom cable count Count each additional cable or conductor represented above.

Design buffer below limit (%) Buffer is a planning target; it does not change NEC fill limits.

Conductor style note Compact data can differ; use manufacturer data when required.

Conduit fill estimate

Wire fill percentage 0% based on conductor area

Allowed fill area 0 in² NEC-style rule

Remaining area 0 in² 0 mm²

Estimated same-size capacity 0 Group A conductors

Calculation breakdown

⚙Fill Rule And Raceway Specs

📊Result Comparison Grid

Comfortable < 85% Of the allowed fill area after applying the conductor-count rule.

Tight 85-100% Within the limit, but bends and future additions may be difficult.

Overfilled > 100% Conductor area exceeds the selected fill allowance.

Separate check Ampacity Fill is physical space only; derating and ampacity are separate calculations.

📋Reference Tables

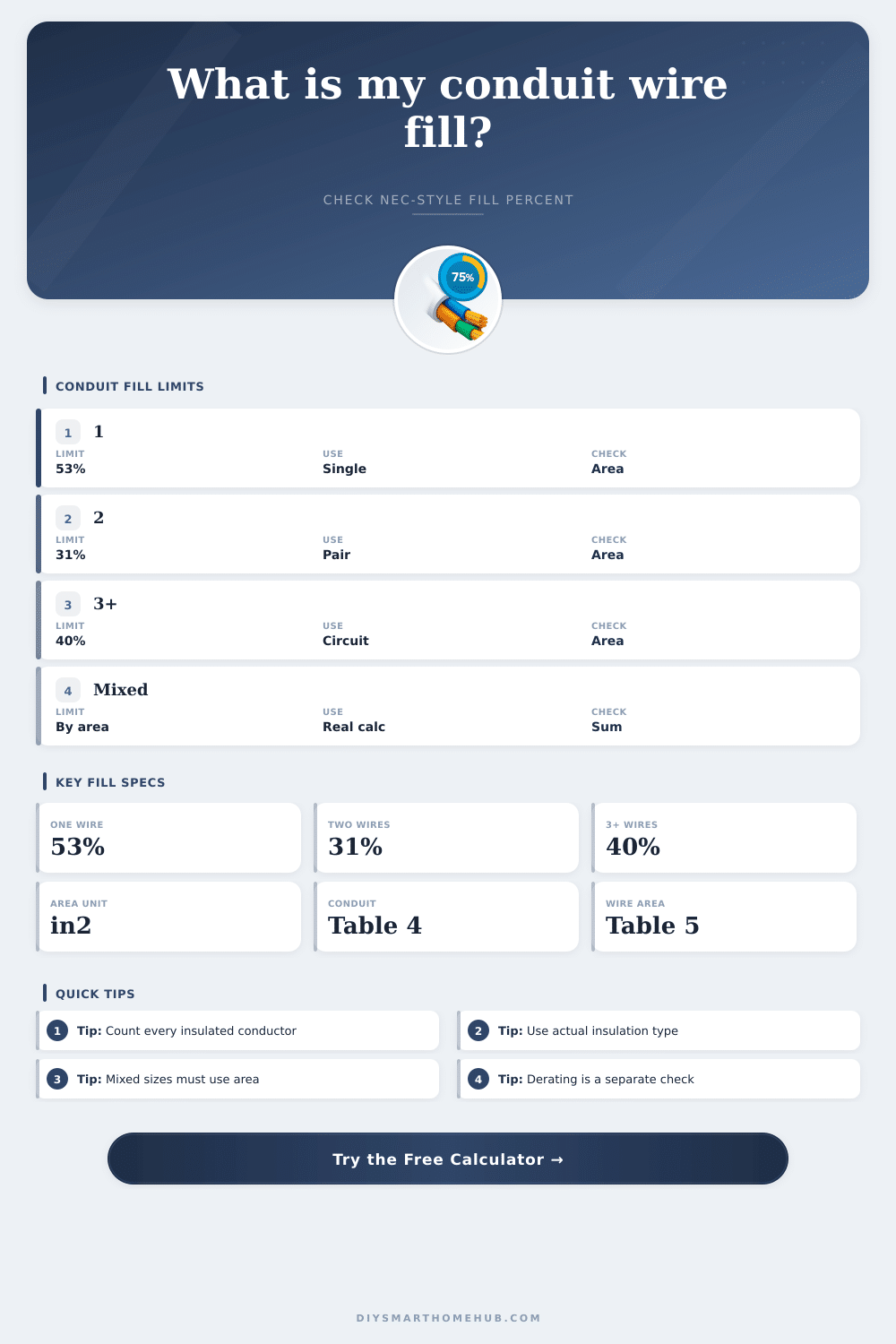

Conductor count	Maximum fill	Area formula	Calculator use
1 conductor	53% of conduit area	Total conductor area / conduit area	Large single conductor or single cable body
2 conductors	31% of conduit area	Total conductor area / conduit area	Two-conductor raceway checks
3 or more conductors	40% of conduit area	Total conductor area / conduit area	Most branch-circuit and feeder raceways
Mixed sizes	Based on count above	Sum each conductor area first	Best method for mixed AWG or insulation types

Conduit type	1/2 in area	3/4 in area	1 in area	1-1/4 in area	1-1/2 in area	2 in area

AWG / kcmil	THHN/THWN-2	XHHW-2	RHH/RHW-2	Bare copper

Example raceway	Conductor set	Typical fill rule	Planning note
15A lighting branch	3 x #14 THHN plus #14 ground	40% because count is over two	Small conductors often fit easily, but derating may still apply.
20A receptacle branch	3 x #12 THHN plus #12 ground	40% because count is over two	Use the actual neutral and ground count for the raceway segment.
Feeder with ground	2 hots, neutral, and equipment ground	40% because count is over two	Mixed sizes should be added by area, not by a simple wire-count chart.
Single large conductor	1 insulated conductor	53% for one conductor	The one-conductor allowance is different from the common 40% rule.

🔧Wire Fill Tips

Use area for mixed conductors: When AWG sizes or insulation types differ, add each conductor area first and compare that total with the allowable raceway area.

Keep fill separate from ampacity: This calculator checks physical conduit fill; conductor ampacity adjustment, grounding rules, and local code review are separate steps.

That means you can spend more time determining whether or not the job makes sense. You can also determine if a single length of conduit will hold 3 #14 insulated conductor in that raceway you’re staring at. Yep…that happens to all of us that pull wire. Seasoned journeymen electricians is pulling feeders in an overcrowded attic space. Homeowners are upgrading their garage circuits for the first time. Not because the math is difficult…but because there’s no way you can do that math in your head while holding wire pullers.

That’s where this tool come into play. It manages the numbers for you.

How to Use the Conduit Fill Calculator

Conduit fill is pretty straightforward. You look at the inside volume of the conduit and compare it to the volume of each conductor. There’s a specific limit established in the National Electrical Code depending on how many wires you’re pulling. For example, if there’s only one wire then you can take up to fifty-three percent of the volume inside the conduit. If there’s two then you’re down to thirty-one percent. For three or more wires you’re looking at forty percent for most people.

This isn’t because you’ve exceeded the electrical load. It is because there needs to be enough space to pull the cables through without removing any of their insulation. There also needs to be extra room so more circuitry can be added in the future. Its all about physical space.

Most errors happen because people ignore the insulation thickness. Fourteen gauge is not fourteen gauge. How does this matter? The type of jacket matters. Some jackets are thin and snug (THHN). Others are large and chunky (RHH). A wrong calculation can mean the difference between a smooth pull and tearing off the head of conductor.

The tool accounts for this by pulling the actual values for areas when selecting insulation types. It doesn’t make the assumption that all small conductors has the same space requirements.

Another typical pitfall is mixing wire sizes. Can you imagine using a big feeder next to smaller control wiring and grounding conductors? Nope, you can’t average it out. Before comparing the total to the raceway limit, you have to sum the actual area of every single conductor. The calculator allows you to enter multiple sets of wires with varying diameters. This matches exactly how a multi-circuit residential panel or an industrial feed is planned. So you don’t accidentally overfill a conduit by guessing that those smaller ground wires doesn’t take any room. They do. Every square inch matters.

Think about how those bends on your run will affect things. The straighter the better; and while elbows aren’t terrible, they do add friction which compacts the bundle. Pulling through three ninety degree turns becomes a nightmare if your fill percentage is already sitting right on the edge of tolerance. A lot of guys try to keep it below that fill level just so it’s easier on their back. It also saves your wires too. Having some space between them means less drag when you have to pull one out 5 years later.

But that’s another matter, which is ampacity derating. Just because you can get six big wires into a two-inch conduit without causing a problem with fill doesn’t mean they won’t overheat due to being too close together. Bundling rules and current ratings has nothing to do with geometry; they have to do with heat dissipation. Confuse the two, especially when you’re in a rush, and you’ll see where things go wrong. Always double-check both. One says the wire fits. The other says it stays cool.

On the page they also include reference tables that break down common wire size and standard conduit sizes. You can see at a glance how the internal areas of rigid metal, PVC, or EMT compare. The inside volume of each is different by just a bit. That makes one fit over another in a different way. Knowing that gets you picking out the correct material before even cutting any hole in the wall. Turns it from a guessing game into a plan.

In short, filling conduit correctly is all about understanding the physical limitations of your materials. No, it’s not like forcing a bunch of steel into some plastic. This is a system that should of stand the test of time for decades. That’s why the conduit fill calculator makes the math easy to understand so you can picture the volume before making the pull.

Spend a minute reviewing your counts and insulation types. It will save you hours of headache down the road. After you realize how fast conductors accumulate, you won’t guess anymore. Instead, you’ll plan confidenty.
