Duct Elbow Equivalent Length Calculator
Estimate how much duct length elbows, radius ratio, angle, flex compression, transitions, dampers, boots, takeoffs, and other fittings add to a real HVAC airflow path.
📌Quick duct path presets
📏Duct elbow and fitting inputs
Duct equivalent length results
Results will appear after calculation.
⚙Selected fitting spec grid
Diameter multiple before radius, angle, flex, and quantity adjustments.
Lower R/D values raise the fitting allowance; long sweeps reduce it.
Reducer, boot, or plenum allowance expressed as duct diameters.
Dampers, takeoffs, branches, hoods, and grille boxes add local loss.
📋Reference tables

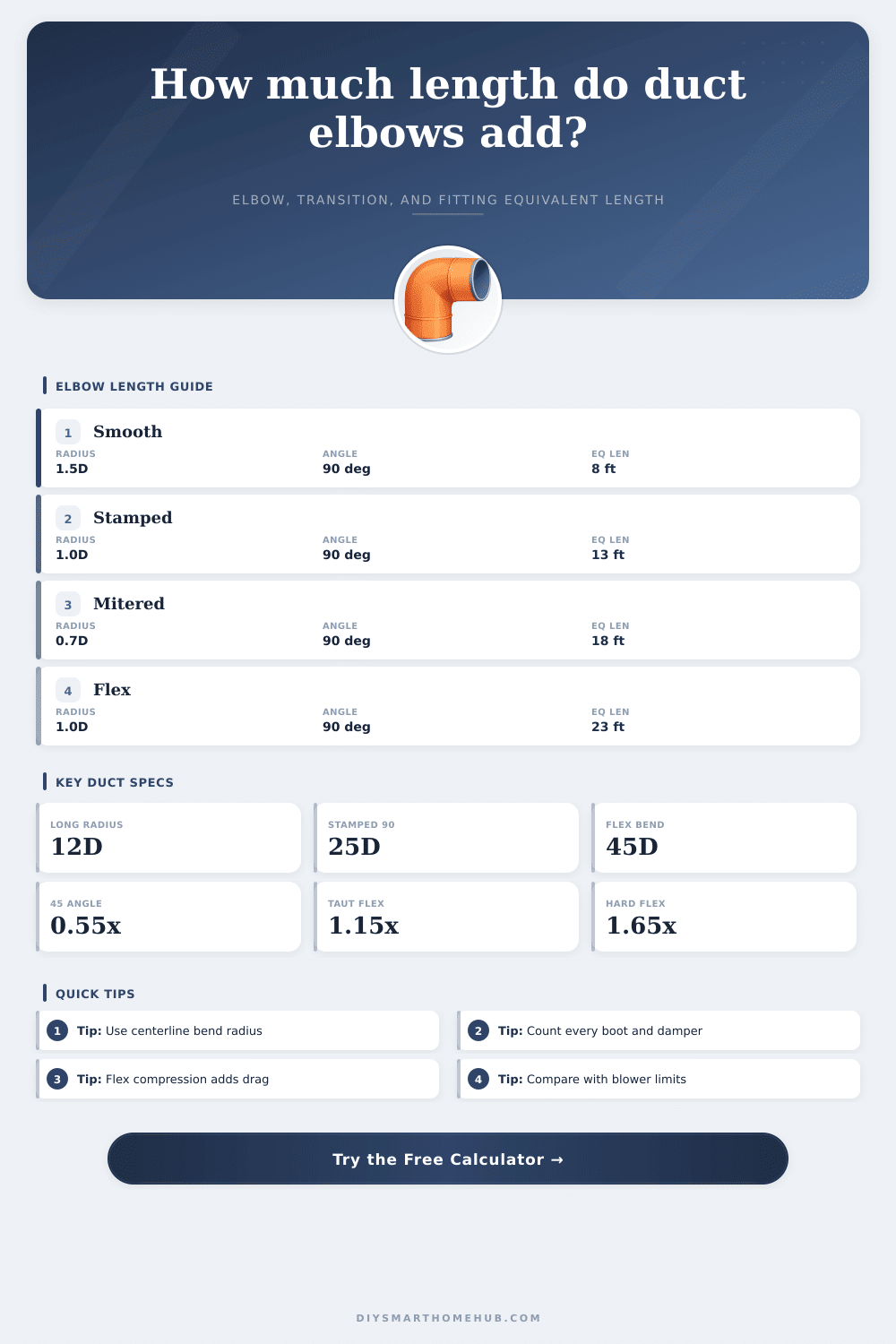

| Elbow type | Base factor | Best use | Watch point |
|---|---|---|---|
| Smooth long-radius elbow | 12 diameters | Quiet supply and return branches | Needs physical space for the sweep |
| Smooth standard-radius elbow | 15 diameters | General round metal duct | Radius ratio still matters |
| Stamped adjustable metal elbow | 25 diameters | Compact residential turns | Crimped seams increase local loss |
| Segmented or mitered elbow | 35 diameters | Shop-built rectangular turns | Sharper segments need more allowance |
| Rectangular boot elbow | 30 diameters | Register and grille connections | Often paired with a transition |
| Flex duct bend | 45 diameters | Short appliance and attic offsets | Compression can dominate the result |
| Input | Typical value | Calculator effect | Field note |
|---|---|---|---|
| Long sweep radius | 1.5D to 2.0D | 0.78x to 0.88x | Good for low-noise branches |
| Standard radius | 1.0D | 1.00x | Baseline for many tables |
| Tight radius | 0.5D to 0.75D | 1.22x to 1.52x | Common near joists or cabinets |
| 45 degree bend | 45 degrees | About 0.55x | Two 45s can beat one tight 90 |
| Offset pair | 30 to 45 degrees | Angle scaled per bend | Count each elbow in the pair |
| Fitting | Base factor | Use when | Recommendation |
|---|---|---|---|
| Gradual reducer or increaser | 8 diameters | Length is at least 3 duct diameters | Prefer gradual transitions |
| Abrupt reducer or increaser | 18 diameters | Short adapter or sudden area change | Keep away from fan inlet |
| Register boot transition | 25 diameters | Round duct enters a boot | Count boot and elbow if both exist |
| Conical or spin-in takeoff | 16 diameters | Branch leaves a trunk | Use a larger factor for sharp taps |
| Balancing damper | 10 diameters | Damper is mostly open | Closed dampers add more loss |
| Tee branch fitting | 35 diameters | Air makes a sharp branch turn | Wyes are usually lower loss |
| Preset | Duct | Elbow model | Typical concern |
|---|---|---|---|
| Bath Fan 4 in | 4 in round | Stamped 90s with hood | Small duct becomes restrictive quickly |
| Quiet Supply 6 in | 6 in round | Long-radius smooth turns | Keep velocity and hiss down |
| Range Hood 8 in | 8 in round | Smooth 90s and backdraft hood | Hood fittings add real length |
| Return Main 14 in | 14 in round | Large radius return elbows | Long runs amplify fitting choices |
| Attic Flex Branch | 7 in flex | Flex bends with compression | Sag and tight turns add drag |
| Grow Tent Filter | 6 in flex | Flex bend plus filter fittings | Accessories consume fan headroom |
💡Calculation tips
Equivalent length lets you compare elbows and fittings on the same footing as straight duct, then pass the total into a friction, static pressure, or fan curve check.
A wide, fully stretched bend can behave reasonably, but sagging flex with a tight radius can add more resistance than the straight run itself.
The first thing most of us do when we hear a bathroom fan sound like a car on its last legs is blame the motor, but it’s rarely the motor. It’s the way the air is forced to travel, which causes it to meet resistance due to each and every abrupt corner. Ductwork, in our minds, is air plumbing; it’s just like pipes going from point A to Point B. That’s an extremely limited view, especially when talking about heating/air conditioning (HVAC).
A short, direct run with three narrow corners can have higher static pressure then a longer, smoother run. Air doesn’t care how far it has to go; it only cares about turbulence. Every time it need to turn sharply or hit a wall, it slows down. Now I’ll let this calculator do the math for you. It will convert these physical barriers into an equal length of straight duct and show you why it is important to do so.
Why Airflow Resistance Matters More Than Duct Length
Friction charts assume a linear flow; there’s no way you can just tack on ten feet of duct to your existing length if that ten feet has two 90-degree bends and a boot transition. It could effectively be twenty-five feet of resistance. And that’s where jobs goes wrong. We size fans based off the visible distance instead of the unseen drag, making rooms that should be comfortabley feel stifling.
The other huge factor is elbow geometry. Airflow flows smoothly with little loss around a long radius turn without sacrificing much velocity, and it’s not as noisy as an elbow where air abruptly turns and loses energy. Contractors will try to go to the same old stamped metal elbow which takes up way less space in the ceiling/wall but it has crimped sections that cost pennies and cause major localized loss. Check out the reference table on this page; they’re almost 3x worse than a nice long smooth sweep at the exact same size.
That’s what everyone gets wrong. Saving twenty bucks on fittings means losing half your airflow efficiency. There’s one more wrinkle: flexible ducting. Flex ducts have internal ribs which create a rough interior that adds some extra friction, but what kills them is compression. A crumpled mess acts as a choke point; it has a smaller cross-section than when it’s fully stretched out, so the resulting turbulence spikes; flex duct sagged or squished in an attic will reduce its diameter (the reason it was installed there), and the turbulence spike again.
The calculator includes this possibility by giving you the chance to adjust its calculation by applying a correction factor to how taut or saggy your actual install is. You must provide honest input here. Don’t neglect the small stuff. Takeoffs, dampers and boots will all add up to the overall load. Airflow separates when it changes from round to rectangular (a register boot is more than just a hole in wall). A partially closed balancing damper adds resistance that builds up through each elbow upstream. Every component is draining some amount of power and together they form a circuit.
Your objective is for the total equivalent length to stay within the capacity curve of your fans, otherwise the system will stall if you go beyond that. It’s about paying in dollars for pressure and noise. Each dollar you spend on a fitting that moves more smoothly is a penny you save on fan energy and decibel loss in your livig room. The longer sweep radius may appear to be overkill in a cramped crawl space but it also means quieter operation and benefits paid.
Pushing air at a sharp angle will make your system whistle, with tones that can’t be hidden by any insulation. The key is most of what’s really being measured. It is not inches on a tape measure. It is the combined effect of each variation in texture, surface, and direction change.
The bottom line is that a well-designed duct isn’t noticeable. If it’s done right, all you see is that your room is cool. The HVAC system doesn’t demand attention to achieve this result. Treating duct transitions and elbows as serious contributors to system load rather than minor details will ensure the air moves where it needs to go.
Resistance is the story told through the numbers; comfort is the headline. Respect those bends, start with the path, and let the fan do its job instead of fighting physics. In the end, what you’ll hear is the quiet hum of a system not choked by sharp turns.
