Cat6 Cable Diameter Calculator

A network cable looks like a skinny string. Stuff it behind your walls and move on.

Nope. Cat6 comes in various thicknesses, which determine if its connector will fit into a switch port, if the cable can be pulled tight without snapping, and how many can be stuffed into a conduit. Seems trivial…until you’re on a ladder with 40 stiff cables refusing to go down a narrow hole. Then you wish you had measured twice.

Why Cable Thickness Matters for Your Install

After entering the jacket type (and cable count), the calculator do the rest. It’s a lot easier than wondering if that bundle will physicaly fit in your conduit. There are no “one size fits all” Cat6 cable here. The patch cord behind your monitor might be barely half the thickness of the heavy duty outdoor cabling running through your attic. Selecting the right construction, such as standard UTP versus F/UTP, let the tool distinguish between them.

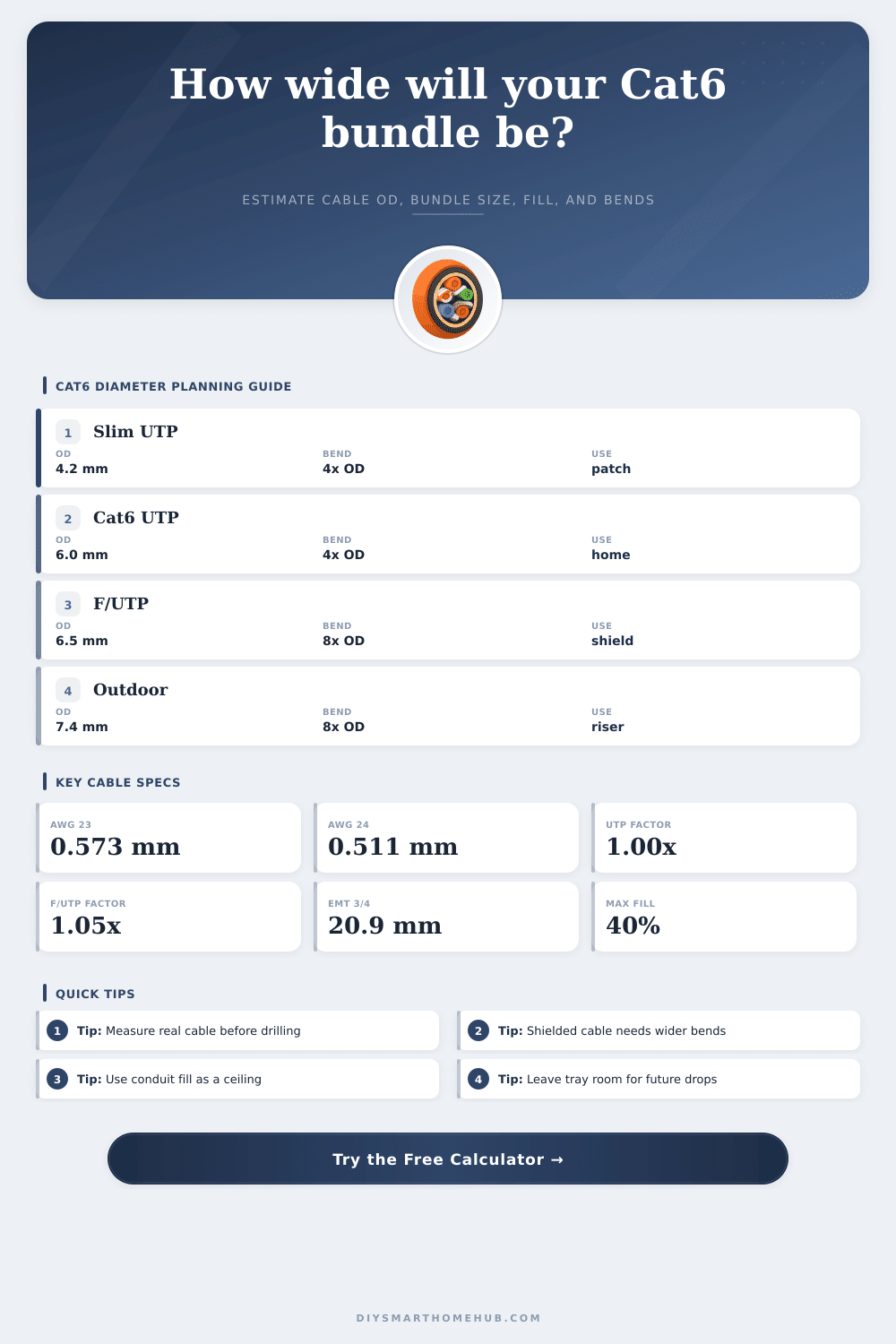

Adding shielding increases both the diameter and stiffness of the cable, which directly affects the maximum bend radius before signal degradation occur. You definitely want to know this before ordering conduit runs or drilling holes in your drywall. Many DIY installs go wrong because of the bend radius. There’s a point of curvature a cable will withstand before it shifts its insides and starts losing packets due to signal loss or crosstalk. Unshielded are generally 4x the diameter; shields usually need 8x. Do this wrong, and the cable work great initially and then loses packets three months from now as insulation settles. This chart on the page spells it out nicely for popular cable types. You’ll find yourself thinking that shielded runs requires a lot more space in those junction boxes.

Conduit fill is another consideration. Network best practices and electrical codes typically limit fill to no more than 40% for multiple cables. Why? It lets you pull new cables without pulling out existing ones, and it prevents heat from building up when too many cable are packed together. The calculator takes this into account when calculating your bundle’s diameter. It knows cables is round and they don’t pack tightly into a perfect circle.

Lacing neatly makes a tidy package that will lie flat in a tray. Velcro-wrapping messily means it gets fatter and harder to shove around corners. Choose the right looseness factor so you don’t buy conduit that seems big enough on paper but is actualy impossible to get anything through. The same reasoning applies to tray capacity planning, only at a bigger scale.

When routing cables through a ceiling tray or open rack, you’ll want to know whether there’s still space for additional drops when adding new equipment. A full tray becomes a solid block of plastic that prevents airflow, heats up, and renders trouble-shooting a nightmare. By entering the tray dimensions, the tool can calculate remaining free space from your first installation. It is better to have some unused space than to having to re-route the entire network because you suddenly need to add one more port down the hall.

The diameter is also an important thing to choose correctly, though the difference is subtle. For example, permanent runs should of use 23 AWG solid copper wire, which provides sufficient stiffness/pull strength. While 24 AWG may be ever-so-slightly thinner, it isn’t as strong for long horizontal pulls. If you don’t enter a custom diameter, the calculator will account for conductor size in its total diameter estimate. But keep in mind that each manufacturer handles jackets different. Just because two cables are in the same category doesn’t mean they’ll both have the same jacket thickness, because the amount of material used can change. That’s why we find it best to enter an outside diameter based off what you’ve actualy measured from your spool instead of just trusting generic defaults.

The physical world has become digital, and the digital world has become physical. Friction does not negotiate; neither does geometry. Drill first and then measure real cable to be sure your pathways allows for the actual hardware you’re going to install. Space constraints force reality on the numbers, which dictate the decision. Respect the fill limits, plan the bends now, and your installation will outlast the cables inside of it.
